Background
By the end of Part 1, a deploy was a reviewed commit to acid, my GitOps repo, followed by a click on Sync in Argo. The commit was the annoying part. CI built an image, I copied its digest out of the log, opened acid, pasted it into a kustomization.yaml and opened a PR. Fine for one app, old fast with five:
sumeragi arcade backend built in my Gitea CI
sumeragi-net web companion, API + web images built in my Gitea CI
rche e-amusement server core built in my Gitea CI
rche-plugins rche's plugin artifact built in my Gitea CI
reminiscence arcade queue board, public on GitHub released to GHCR
What I wanted:
make each application repo (sumeragi, sumeragi-net, rche, reminiscence) auto pushes new image to acid on main branch ci success
The one rule I didn’t want to bend: Argo stays manual. Automation can propose and merge the commit, and I still press Sync.
The public repo that can’t know my Git exists
Reminiscence is the odd one. It’s public on GitHub and releases to GHCR. The obvious design is a GitHub Action that clones acid and pushes a bump, and I didn’t want that:
I don’t want to have acid name or my internal infra known to public / also git.umi4.life is not public. github wont be able to reach it
After a proper look at what people run for this, the answer was the boring one: self-hosted Renovate. It polls GHCR from inside my network and opens PRs against acid, and GitHub never learns anything.
Renovate in k3s couldn’t reach Git either
The first Renovate ran as a CronJob in the cluster but failed becauseing of recurring limitation I self imposed:
k3s server is not in the same lan as gitea
From the k3s nodes, git.umi4.life cannot resolve, and the read-only mirror Argo uses can’t serve Renovate, which needs the Gitea API. Renovate moved to Docker Compose on exgress, the edge VM that can see both sides, and runs every five minutes.
The config turns everything off and then allows one image:
{
"enabledManagers": ["kustomize"],
"automerge": false,
"packageRules": [
{
"description": "Disable every Kustomize Docker dependency until explicitly allowlisted",
"matchManagers": ["kustomize"],
"matchDatasources": ["docker"],
"enabled": false
},
{
"matchFileNames": ["applications/reminiscence/kustomization.yaml"],
"matchPackageNames": ["ghcr.io/umi4life/reminiscence"],
"enabled": true,
"versioning": "regex:^v(?<major>0|[1-9][0-9]*)\\.(?<minor>0|[1-9][0-9]*)\\.(?<patch>0|[1-9][0-9]*)$",
"pinDigests": true,
"automerge": true,
"automergeType": "pr",
"ignoreTests": false
}
]
}
Once Reminiscence published semver vX.Y.Z tags, Renovate opened v1.1.2 → v1.1.3@sha256:8d4b7c80…, CI checked the tag against the GitHub release and the GHCR digest, and renovate-bot merged it.
auto merge went through and showed diff on argo
In-house images: AcidPR
The other four apps are built in my own CI, so there’s no public release to poll. Instead, CI opens the bump PR itself, through a small tool I call AcidPR.
It’s a step in each app’s build job, between pushing the image and cleanup:
- name: Bump AcidPR
if: gitea.event_name == 'push' && gitea.ref == 'refs/heads/sumeragi'
env:
ACIDPR_GITEA_TOKEN: ${{ secrets.ACIDPR_BOT_GITEA_TOKEN }}
IMAGE_DIGEST: ${{ steps.push.outputs.image_digest }}
run: |
git clone --depth=1 https://git.umi4.life/umi4life/acid.git acid
acid/scripts/acidpr-promote-image.sh \
--repo acid \
--publish \
--application sumeragi \
--source-repository umi4life/sumeragi \
--source-revision '${{ gitea.sha }}' \
--image "registry.umi4.life/sumeragi@${IMAGE_DIGEST}"

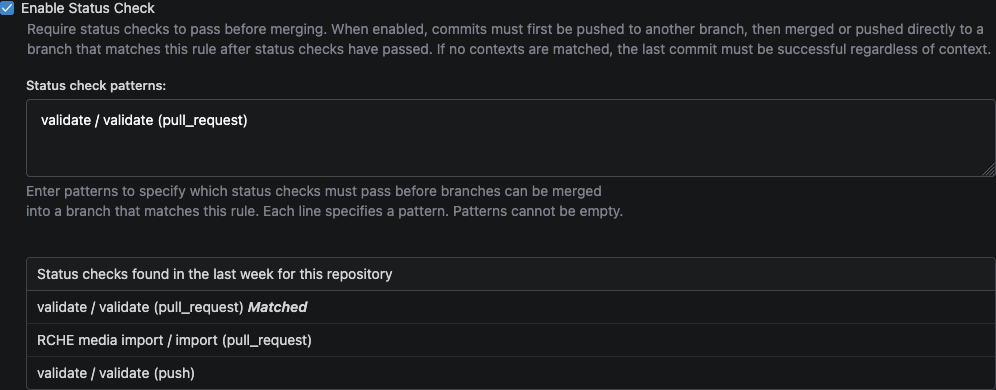

AcidPR opens a PR as acidpr-bot, and Gitea merges it once acid’s required validate check passes. The bot can write to acid and nothing else, and its token is one user-level secret shared by every app repo.
One policy file
AcidPR itself knows nothing about my apps. Everything app-specific lives in one reviewed file in acid: which repo may build which image, which files that image may be written to, and how it’s referenced.
# acid/config/image-promotion-policy.yaml
applications:
sumeragi:
sourceRepository: umi4life/sumeragi
targets: [applications/sumeragi/kustomization.yaml]
images: [registry.umi4.life/sumeragi]
referencePolicy: digest
rche-plugins:
sourceRepository: umi4life/rche-plugins
targets: [applications/rche/kustomization.yaml]
images: [registry.umi4.life/rche-plugins-artifact]
referencePolicy: digest
reminiscence:
sourceRepository: Umi4Life/reminiscence
targets: [applications/reminiscence/kustomization.yaml]
images: [ghcr.io/umi4life/reminiscence]
referencePolicy: numbered-version
renovate: true
A request that doesn’t match its entry, like the wrong source repo or an image the app doesn’t own, gets rejected before anything is written. So does an unknown referencePolicy. Apps with renovate: true belong to Renovate, and acid’s tests build the Renovate allowlist from the same file. Adding an app means adding an entry, and the script and tests stay the same.
Getting all four through
Afterwardss, a push to each app’s main branch built the image, opened a PR in acid, passed validate, and got merged by acidpr-bot. Then I synced all four in Argo manually. Rche’s core and plugin images are promoted separately, so what runs is always a pair I picked.
Tip
When only one side can see the other, make the side that can see pull. My internal Renovate polls public GHCR, so the public repo never needs to know my Git exists.
How it fits together now
flowchart TB
subgraph pub["Public"]
RM[Reminiscence release] --> GHCR[(GHCR)]
end
subgraph lan["Internal LAN"]
SRC["sumeragi, sumeragi-net,
rche, rche-plugins"] --> CI[Gitea CI]
CI --> REG[(my registry)]
CI -- AcidPR --> PR[PR to acid]
PR -- "validate passes,
bot merges" --> ACID[acid main]
end
subgraph edge["exgress"]
REN[Renovate]
MIR[git-mirror]
end
subgraph dmz["DMZ"]
ARGO[Argo CD] -- "Manual Sync" --> K3S[k3s]
end
REN -- polls --> GHCR
REN -- opens --> PR
ACID -- push mirror --> MIR
MIR -- read only --> ARGO
Merging takes care of itself now. Syncing is still my click.
