Background
Part 1 ended on two Proxmox hosts and a single k3s server, and the top of my wishlist was a third worker and control-plane HA. Both were really waiting on hardware. Then I got more bare-metal machines, and the Proxmox cluster went from two hosts to six.
More hosts meant more places to put k3s VMs, so this part is the follow-up: more agents, more servers, and a test to see whether losing a server still matters.
New hosts, and the network went quiet
Agents 3 and 4 went onto two of the new hosts. Terraform cloned and booted them fine, and then Ansible couldn’t reach either one:
k3s-agent-4: connect failed: No route to host
k3s-agent-3: Connection timed out during banner exchange
My DMZ is a Proxmox SDN zone stretched across the hosts with VXLAN, so each host wraps DMZ traffic in UDP on port 4789 and sends it to the others. Going down the stack:
VM running with the right IP ok
tap attached to the dmznet bridge ok
ARP for the DMZ gateway INCOMPLETE
VNI and port identical on every host ok
tcpdump: VXLAN frames leaving the new host yes
replies coming back none

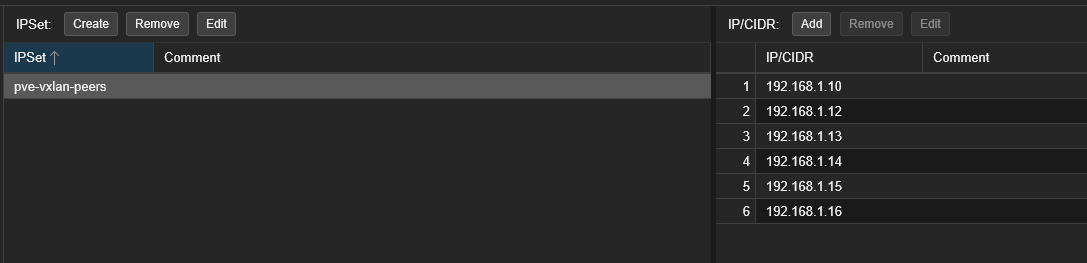

Frames left and nothing came back, so the drop was on the receiving side. Proxmox’s cluster firewall has an IPSet, pve-vxlan-peers, listing which hosts may send VXLAN traffic. The new hosts were in the SDN peer list but not in the firewall’s, so everything they sent was dropped on arrival.
I found it and added them by hand:
turns out it was missing ipset. I’ve added the ips and it fixed everything / make this durable and unmissable by implementing to tsukishiro-iac
So now one inventory in Terraform drives the SDN zone’s nodes, its peers and the firewall IPSet:
locals {
proxmox_nodes = {
tsukishiro = { underlay_ip = "...", vxlan = true }
sakuraba-1 = { underlay_ip = "...", vxlan = true }
# one line per host
}
vxlan_node_names = sort([for name, node in local.proxmox_nodes : name if node.vxlan])
vxlan_peers = [for name in local.vxlan_node_names : local.proxmox_nodes[name].underlay_ip]
}
resource "proxmox_sdn_zone_vxlan" "dmz" {
id = "dmzvx"
mtu = 1450
nodes = local.vxlan_node_names
peers = local.vxlan_peers
}
resource "proxmox_virtual_environment_firewall_ipset" "vxlan_peers" {
name = "pve-vxlan-peers"
dynamic "cidr" {
for_each = local.vxlan_peers
content { name = cidr.value }
}
}
Adding a host is one line, and the firewall can’t fall behind anymore.
Tip
When two lists have to agree, generate both from one. My SDN peers and firewall IPSet were kept separately, and they drifted the first time I added hosts.
Choosing how the control plane survives
Before adding servers I had one worry:
I have concern where we will run into problem with server config not being replicated. check via ssh to exgress -> ssh to k3s server and check the /protected dir / or are we better off just set up HA on single k3s server
/protected turned out to be my staging folder on server-1 from the Compose days. Nothing in the cluster mounted it, and everything the pods use already lives in etcd, which replicates. So it got a weekly backup to my NAS and stopped being a blocker.
That left two real options:
A Proxmox HA for the one server VM
restarts on another host, a few minutes with no API,
and it can lose the latest etcd writes
B three k3s servers with embedded etcd, plus kube-vip
any one server can die, the API stays up on a floating IP
I went with B. Server-1 had run embedded etcd since day one (cluster-init: true in Part 1), so there was no datastore migration. In Ansible, the first server initialises the cluster and the others join it one at a time:
# ansible/roles/k3s_server/templates/config.yaml.j2
{% if k3s_is_first_server %}
cluster-init: true
{% else %}
server: https://{{ hostvars[k3s_first_server].ansible_host }}:6443
token: {{ hostvars[k3s_first_server].k3s_server_token | to_json }}
{% endif %}
tls-san:
- {{ k3s_api_vip }}
Each server runs kube-vip as a static pod. The servers elect a leader, the leader answers for the API VIP 10.10.10.40, and the agents point at the VIP instead of server-1.
Pulling the plug on server-1
I stopped k3s on server-1 while it was the VIP leader, the worst one to lose, and watched for two minutes:
systemctl stop k3s (k3s-server-1, current VIP leader)
VIP ping answered every poll
https://10.10.10.40:6443/readyz ok for the whole window
agents 1-4 Ready throughout
k3s-server-1 NotReady after ~45 s
VIP lease plndr-cp-lock moved to k3s-server-2
systemctl start k3s
k3s-server-1 Ready in ~15 s, etcd healthy
The API never went away, no agent noticed, and server-1 rejoined by itself.
One of each per host
Later I added a fourth server so every k3s host gets one server and one agent, in name order. Four etcd members still tolerate only one failure, same as three, but I wanted the tidy layout.
Moving VMs between hosts through Terraform turned out to be destructive. Changing node_name on a VM with local disks means destroy and recreate:
Plan: 4 to add, 10 to change, 4 to destroy
So I live-migrated them by hand instead, one at a time, waiting for every server to be Ready before the next:
qm migrate 9110 tsukishiro --online --with-local-disks 1 --targetstorage local-lvm
With the VMs already where the code said they should be, the same plan had nothing left to destroy:
Plan: 0 to add, 14 to change, 0 to destroy
The cluster now:
tsukishiro k3s-server-1 .30 k3s-agent-1 .31
sakuraba-1 k3s-server-2 .35 k3s-agent-2 .32
sakuraba-2 k3s-server-3 .36 k3s-agent-3 .33
sakuraba-3 k3s-server-4 .37 k3s-agent-4 .34
API VIP 10.10.10.40 (kube-vip)
Sumeragi went to four replicas, one per agent, and rollouts now replace two at a time with the PodDisruptionBudget still in place.
How it fits together now
flowchart TB VIP["API VIP 10.10.10.40
held by the kube-vip leader"] ETCD[("embedded etcd
4 members")] subgraph h1["tsukishiro"] S1[k3s-server-1] A1["k3s-agent-1
sumeragi pod"] end subgraph h2["sakuraba-1"] S2[k3s-server-2] A2["k3s-agent-2
sumeragi pod"] end subgraph h3["sakuraba-2"] S3[k3s-server-3] A3["k3s-agent-3
sumeragi pod"] end subgraph h4["sakuraba-3"] S4[k3s-server-4] A4["k3s-agent-4
sumeragi pod"] end A1 & A2 & A3 & A4 --> VIP VIP --> S1 & S2 & S3 & S4 S1 & S2 & S3 & S4 --- ETCD
Every host sits on the same VXLAN DMZ, with its peers and firewall IPSet generated from one Terraform inventory.
The next post is about getting images from CI into acid without me pasting digests by hand.
