Background
My two arcade servers, Sumeragi and RCHE, run as four replicas each on a k3s cluster in my homelab DMZ LAN (read k3s series). Rche already had a full Grafana dashboard with every game and cabinet. Sumeragi had logs and nothing else so it is lacking grafana metrics unlike rche.
So I gave Sumeragi Grafana Alloy to send pod logs to Loki. Prometheus and Grafana run on a monitoring VM on my LAN, which can’t reach the DMZ, so Prometheus scrapes through a Traefik entrypoint on exgress, my edge VM, which only answers to the monitoring host.

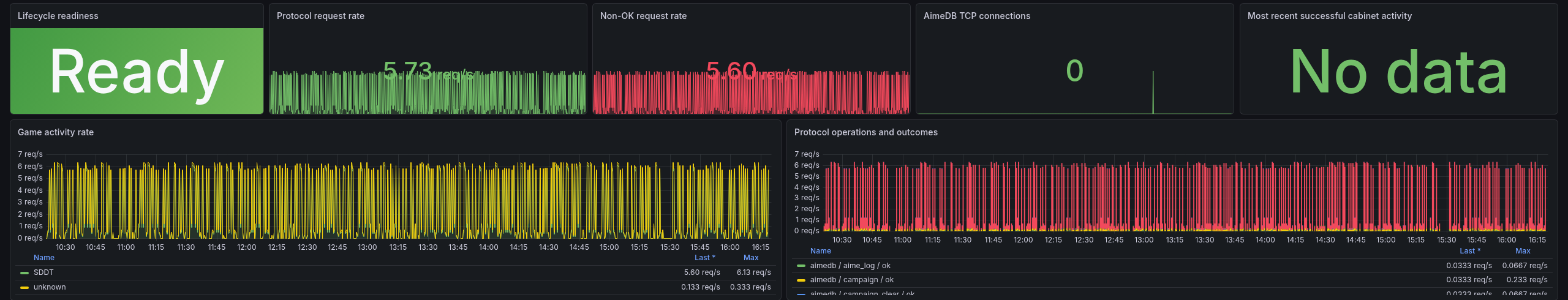

The dashboard went up, and it looked busy than it should.
Traffic that never happened
5.73 requests a second, 5.60 of them “non-OK”, and nobody was playing. Loki had zero title-server log lines for the same hour. One of the two was making things up, and the logs had no reason to.
(The “non-OK” part was its own small bug. Title requests report HTTP status classes, and result!="ok" counted every 2xx as a failure.)
The real clue was a metric that should almost never change:
changes(process_start_time_seconds{job="sumeragi"}[1h]) 91
changes(process_start_time_seconds{job="rche"}[1h]) 94
real restarts in that hour 1
A process start time only changes when the process restarts. Prometheus saw it change 91 times in an hour, cycling between a handful of values, one per pod.
Why
Prometheus had one target per app: the exgress entrypoint. Behind it, Traefik load-balanced across the four agents, and the NodePort behind that used the default externalTrafficPolicy: Cluster, which forwards to any pod in the cluster. Two layers of load balancing, so every scrape landed on whichever pod it got.
Prometheus -> exgress:19084 -> Traefik round-robin
-> 10.10.10.31-34:30080 NodePort (Cluster)
-> any of 4 pods
Each pod keeps its own counters. Over that hour, the Sumeragi title counter only ever took four values:
scrape 1 pod B requests_total 195
scrape 2 pod A requests_total 168 looks like a reset
scrape 3 pod D requests_total 184 +16
scrape 4 pod C requests_total 180 another reset
Prometheus treats a counter going down as a process restart and counts the new value from zero. 40 drops in 120 samples, each one turned into fresh traffic by rate() and increase(), added up to 7,694 requests that never happened. Rche had the exact same setup and the same inflated numbers. Its rates just looked plausible enough that nothing flagged them.
The setup made sense once. /metrics was added when each app was a single container, and the single target stayed in place after both scaled out to four replicas.
One target per pod
A Prometheus target has to be one process. The pods are in the DMZ and Prometheus isn’t, so the path still goes through exgress, and the fix has three pieces.
A metrics NodePort that stays on its node
A separate NodePort for metrics, with externalTrafficPolicy: Local. A node only answers with its own pod, and refuses the connection if it has none. Sumeragi has required anti-affinity, one pod per agent, so one agent address means one pod:
apiVersion: v1
kind: Service
metadata:
name: sumeragi-metrics
namespace: sumeragi
spec:
type: NodePort
externalTrafficPolicy: Local
selector:
app.kubernetes.io/name: sumeragi
ports:
- name: metrics
port: 8080
targetPort: http
nodePort: 30087
Rche got the same on 30088. In a throwaway k3s cluster with two agents, each agent’s port returned its own pod 6 out of 6 times, and the server node refused.
One Traefik route per agent
Traefik’s file provider renders Go templates, so it became one file. The agent is picked by a node query parameter:
{{- $nodes := list "31" "32" "33" "34" }}
{{- $apps := dict "sumeragi" "30087" "rche" "30088" }}
http:
routers:
{{- range $app, $port := $apps }}{{- range $node := $nodes }}
{{ $app }}-metrics-{{ $node }}:
rule: "Path(`/metrics`) && Query(`node`, `{{ $node }}`)"
entryPoints: [{{ $app }}-metrics]
middlewares: [{{ $app }}-metrics-allowlist, {{ $app }}-metrics-headers]
service: {{ $app }}-metrics-{{ $node }}
{{- end }}{{- end }}
services:
{{- range $app, $port := $apps }}{{- range $node := $nodes }}
{{ $app }}-metrics-{{ $node }}:
loadBalancer:
servers:
- url: "http://10.10.10.{{ $node }}:{{ $port }}"
{{- end }}{{- end }}
Adding an agent means adding its last octet to $nodes.
Prometheus relabeling
The targets are the real agent addresses, but Prometheus never connects to them. Relabeling turns the last octet into the node parameter, keeps the agent address as instance, and swaps the address for exgress:
- job_name: sumeragi
metrics_path: /metrics
static_configs:
- targets: ['10.10.10.31:30087', '10.10.10.32:30087', '10.10.10.33:30087', '10.10.10.34:30087']
relabel_configs:
- {source_labels: [__address__], regex: '.*\.(\d+):\d+', target_label: __param_node}
- {source_labels: [__address__], target_label: instance}
- {target_label: __address__, replacement: '<exgress>:19084'}
Dashboards that double counted
Now every pod is its own series, and a few panels started counting things four times. Rche’s database totals, like web users, are reported by every pod, so sum turned 4 users into 16. Those became max. Per-client “last seen” gauges are combined across pods before counting, which took Rche’s “clients up” from 4 back to the real 3. Rates were already fine with sum(rate(...)).

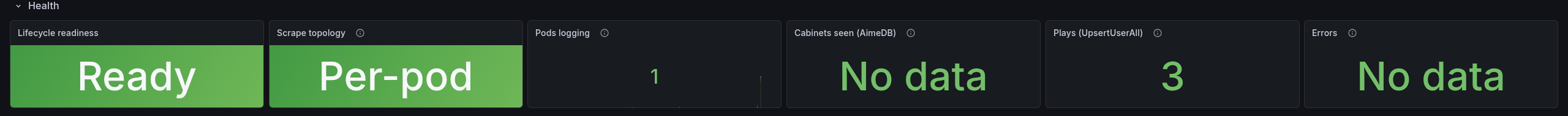

After
targets up 8/8
changes(process_start_time_seconds[5m]) 0 on every instance
The request rate went from a fabricated 5.7 a second to about 0.001, which is what one idle cabinet looks like when it sends a keepalive every 14 minutes. Sumeragi’s dashboard also got a “Scrape topology” panel, max(changes(process_start_time_seconds[10m])), which goes red if a target starts hopping between processes again.
Tip
A Prometheus target must be exactly one process. If you scrape replicas through anything that load-balances, check
changes(process_start_time_seconds[10m]). Outside a deploy it should be 0.
Every cabinet was 10.42.0.0
Sumeragi’s cabinet panels were empty for a different reason. They only labeled cabinets registered in the database, and my cabinet isn’t. It reports the segatools default keychip, and Sumeragi doesn’t enforce keychips. So I added client metrics like Rche’s, keyed on the reported keychip with the client IP as a fallback, capped at 256 clients per pod.
The first client to show up had the IP 10.42.0.0, a Kubernetes pod network address. Every cabinet did.
10.42.0.0 is FRPC to my VPS .My ISP puts me behind CGNAT, so cabinets reach a VPS, and frp tunnels the traffic home to exgress. Tracing it hop by hop:
cabinet -> VPS :80
iptables REDIRECT to frps :18080 real IP kept
frps -> frpc on exgress real IP dropped, frpc sends plain TCP
frpc -> server-1 NodePort 30080 NodePort SNATs to 10.42.0.0
The VPS was fine, since REDIRECT only rewrites the destination. The address got lost when frpc opened a fresh connection on exgress, and the NodePort made it worse. That path also sent every cabinet to one VM, server-1.
frp can prepend a PROXY protocol v2 header with the original address, but something has to read it, and a NodePort can’t. Traefik can. So cabinet HTTP goes to a new Traefik entrypoint that trusts PROXY headers from frpc only, and Traefik passes the address on in X-Forwarded-For.
I tried it in a local lab first, with frps, frpc and Traefik in Docker and a fake cabinet. The real address came through. A client-sent X-Forwarded-For: 6.6.6.6 got overwritten, and a PROXY header from an untrusted source claiming 9.9.9.9 was ignored.
Production was a few lines. frpc:
[sumeragi-allnet]
local_ip = 127.0.0.1
local_port = 18080
remote_port = 18080
proxy_protocol_version = v2
Traefik, published on loopback only, trusting just the Docker bridge gateway that frpc’s traffic arrives from:
entryPoints:
cab-http:
address: ':18080'
proxyProtocol:
trustedIPs: ["172.21.0.1/32"]
Order mattered: Traefik first, then frpc, because a PROXY header sent to an entrypoint that doesn’t expect it is garbage at the start of an HTTP request. After the switch:
cab-http requests 99, all 200
per agent 25 / 25 / 25 / 24
client address real cabinet IP
The cabinet’s real IP showed up in the logs and in the client metrics, and its requests spread across all four agents instead of all landing on server-1. AimeDB and billing are raw TCP and still go through server-1, so those still say 10.42.0.0 until Sumeragi learns to read PROXY headers itself.
How it fits together now
flowchart TB CAB[Cabinet] --> VPS["VPS
REDIRECT to frps"] VPS --> FRPC["frpc on exgress
adds PROXY v2"] subgraph exgress["exgress"] FRPC --> CABHTTP["Traefik cab-http
trusts frpc only"] METRICS["Traefik metrics
one route per agent"] end CABHTTP -- "X-Forwarded-For: real IP" --> PODS["4 pods, one per k3s agent"] METRICS -- "metrics NodePort, Local" --> PODS subgraph mon["monitoring VM"] PROM[Prometheus] --> GRAF[Grafana] LOKI[Loki] --> GRAF end PROM -- "?node=31..34" --> METRICS PODS -. "Alloy ships logs" .-> LOKI
